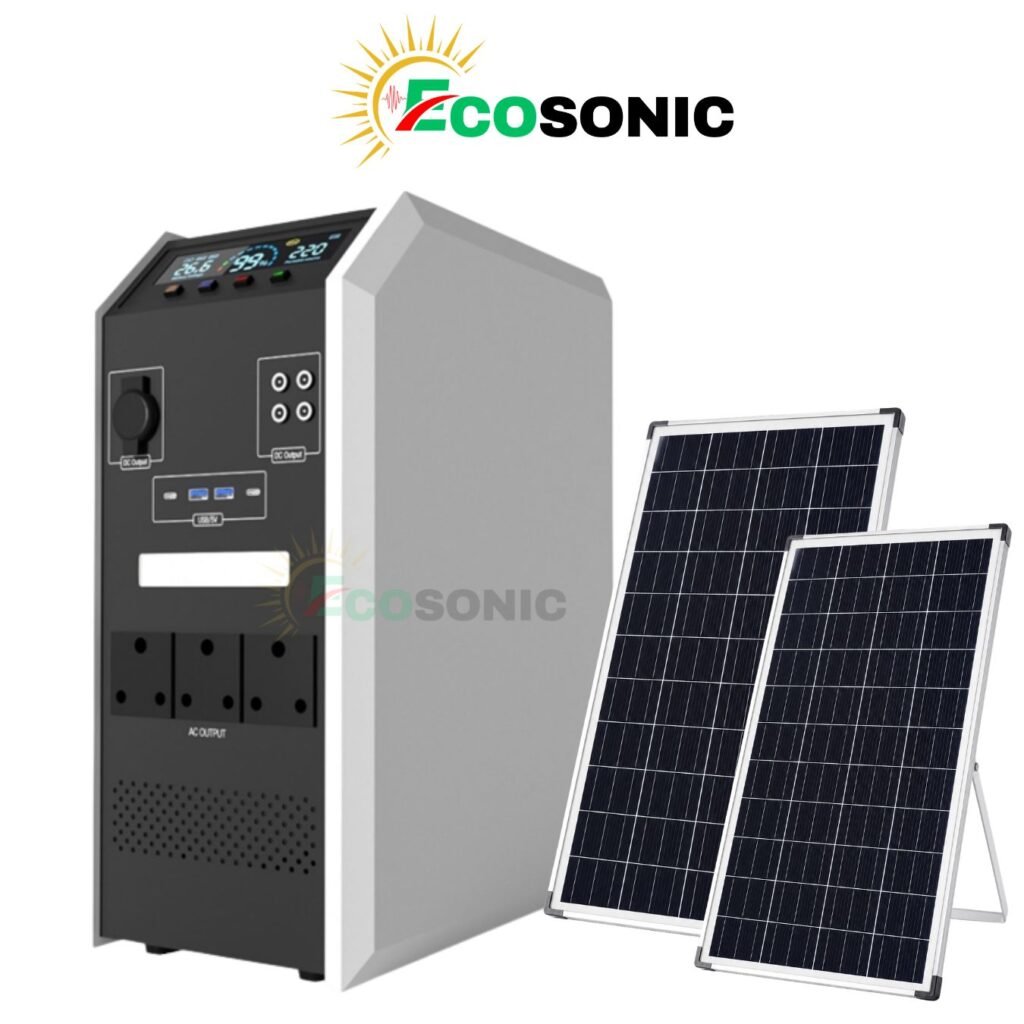

EcoSONIC Hybrid Solar IPS (Model: AP-1500) — 1500W / 1484.8Wh Pure Sine Wave Solar IPS Energy Storage System | 2×100W Mono Solar Panels

Overview: High-Power Backup for Home, Business, and Outdoor Use

When basic backup power is not enough, the EcoSONIC AP-1500 Hybrid Solar IPS provides a high-power portable energy storage solution for demanding applications. With a 1500W Pure Sine Wave inverter, a 25.6V / 58Ah LiFePO4 battery, multiple output interfaces, and high-power solar charging support, the AP-1500 is designed for a wide range of household, business, outdoor, and off-grid power requirements.

The AP-1500 can be recharged through mains electricity or solar power and is designed to power a wide range of high-power appliances, including refrigerators, air conditioners, washing machines, TVs, and other compatible equipment. It also features comprehensive protection circuitry, a built-in 3W LED light, and an LCD Function Display for real-time monitoring.

Estimated Backup Time by Load Combination

To give you a realistic idea of how long the EcoSONIC AP-1500 can provide backup power, the following load combinations are based on the product’s 1484.8Wh Output Reference:

The figures above are approximate reference values. Actual backup time may vary depending on connected load, appliance condition, battery condition, and usage patterns.

With its 1500W Pure Sine Wave output and high-capacity LiFePO4 battery, the AP-1500 is designed for users who need more than basic emergency lighting. It can be used for home backup, small businesses, outdoor activities, job sites, and off-grid applications where dependable portable power is required.

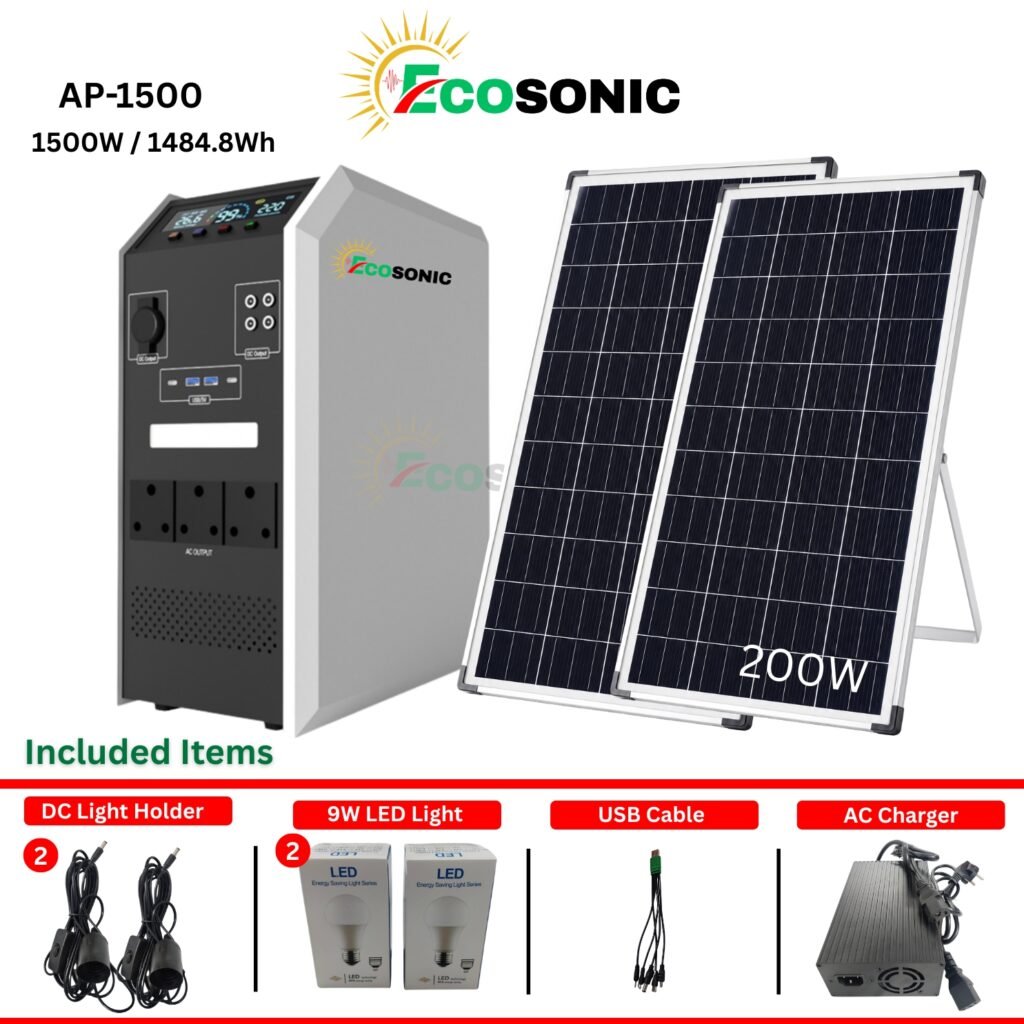

What’s Included in the Box

When you order the EcoSONIC AP-1500, the following items are included with the unit:

✅ 18V 100W Mono Solar Panel × 2

✅ 9W LED Light × 2

✅ AC Charger × 1

✅ 5-in-1 USB Cable × 1

The package includes two solar panels, two LED lights, an AC charger, a 5-in-1 USB cable, and a user manual.

Key Features of the EcoSONIC AP-1500

1. 1484.8Wh High-Capacity LiFePO4 Battery

The EcoSONIC AP-1500 uses a 25.6V / 58Ah LiFePO4 Battery, providing a technical energy capacity of 1484.8Wh. The battery is rated for 5000+ Cycles, making it suitable for long-term backup and energy storage applications.

2. 1500W Pure Sine Wave Inverter

The AP-1500 provides a 1500W Pure Sine Wave output through 3 × AC 220V outlets, with a total rated AC output of 1500W.

Pure Sine Wave output provides stable AC power for compatible household appliances and electronic equipment.

3. High-Power Solar Charging

The AP-1500 supports 36V, Maximum 450W Solar Charging Input. The package includes 2 × 18V 100W Mono Solar Panels.

The power station supports solar charging up to 450W according to the product specification.

4. AC Mains Charging

The AP-1500 can also be recharged through mains electricity. The technical specification lists the AC Charging Input as 220V.

This gives users an additional charging option when grid electricity is available.

5. Comprehensive Protection System

The AP-1500 includes a comprehensive protection system with:

• Overcharge Protection
• Over-Discharge Protection
• High/Low Temperature Protection
• Multi-Stage Overcurrent Protection
• Short Circuit Protection

These protection functions are designed to provide additional safety during charging and operation.

6. Multiple Output Interfaces

The AP-1500 provides multiple output interfaces for different devices and appliances:

• 3 × AC 220V, 1500W Total
• USB-A, 5V / 3A
• USB-C, 5V / 3A
• DC5521, 24V / 5A
• 24V Cigarette Lighter Port

This combination provides flexible connectivity for household electronics, mobile devices, DC equipment, and other compatible appliances.

7. Built-in 3W LED Light

The AP-1500 features a 3W Built-in LED Light with On / Flash / Off modes. The LED is controlled through the dedicated LED Button and can be useful during power cuts, emergencies, and outdoor activities.

8. Real-Time LCD Function Display

The built-in LCD Function Display provides real-time information including:

• Voltage
• Power
• Battery Percentage
• Temperature

This allows users to monitor the system’s operating status while charging or powering devices.

Comprehensive Specifications Table

Benefits of Choosing the EcoSONIC AP-1500

High-Power Output: The 1500W Pure Sine Wave inverter provides high-power AC output for compatible household appliances and electronic equipment.

High-Capacity LiFePO4 Battery: The 25.6V / 58Ah battery provides 1484.8Wh of energy capacity and is rated for 5000+ Cycles.

High-Power Solar Charging: The AP-1500 supports up to 450W Solar Charging Input, providing high-power solar charging capability.

Two Solar Panels Included: The package includes 2 × 18V 100W Mono Solar Panels, providing 200W of included solar panel capacity.

Multiple Output Options: AC, USB-A, USB-C, DC5521, and 24V Cigarette Lighter outputs provide flexible connectivity.

Comprehensive Protection: Overcharge, over-discharge, high/low temperature, multi-stage overcurrent, and short circuit protection are included.

Built-in Emergency Lighting: The 3W LED Light provides On, Flash, and Off modes.

Real-Time Monitoring: The LCD Function Display shows Voltage, Power, Battery Percentage, and Temperature.

Ideal Applications for the EcoSONIC AP-1500

The EcoSONIC AP-1500 is suitable for:

Home Backup During Load Shedding

Use the AP-1500 as a backup power source for compatible household appliances such as refrigerators, fans, TVs, lights, and other electrical equipment.

Air Conditioner Backup

The product reference includes a 1-Ton AC + 2 LED Lights + Router load of approximately 1027W, with a reference backup time of around 1 hour 12 minutes.

Refrigerator Backup

The product reference includes Small Refrigerator + Fan + Light + TV at approximately 270W, with a reference backup time of around 5 hours 30 minutes.

Washing Machine Backup

A Small Washing Machine (~350W) + Light combination is listed at approximately 380W, with a reference backup time of around 3 hours 20 minutes.

Water Pump Backup

The product reference includes a 0.5HP Water Pump (~400W) + Light combination at approximately 420W, with a reference backup time of around 3 hours 30 minutes.

Kitchen Appliance Backup

The product reference includes Iron / Microwave / Rice Cooker at approximately 1000W, with a reference backup time of around 1 hour 20 minutes.

Off-Grid and Outdoor Use

With solar charging support of up to 450W, the AP-1500 is suitable for outdoor activities, remote locations, job sites, and other applications where reliable grid electricity may not be available.

Warranty and Support

The provided EcoSONIC AP-1500 product catalog does not specify a warranty period.

For warranty terms, service coverage, setup guidance, troubleshooting, or after-sales support, Contact Us.

Frequently Asked Questions

How long can the EcoSONIC AP-1500 provide backup power?

Backup time depends on the connected load. According to the product’s 1484.8Wh Output Reference, 1 Fan + 4 LED Lights + Router at approximately 110W can provide around 13 hours 40 minutes, while a 1-Ton AC + 2 LED Lights + Router at approximately 1027W can provide around 1 hour 12 minutes.

Can the EcoSONIC AP-1500 run a 1-Ton AC?

The product reference includes a 1-Ton AC + 2 LED Lights + Router load of approximately 1027W, with an estimated backup time of around 1 hour 12 minutes. Actual performance may vary depending on the AC’s actual power consumption and operating conditions.

Can the AP-1500 run a refrigerator?

The product reference includes Small Refrigerator + Fan + Light + TV at approximately 270W, with an estimated backup time of around 5 hours 30 minutes. Actual backup performance depends on the refrigerator’s power consumption and operating cycle.

Can the AP-1500 run a washing machine?

The product reference includes a Small Washing Machine (~350W) + Light combination at approximately 380W, with an estimated backup time of around 3 hours 20 minutes.

Can the AP-1500 run a water pump?

The product reference includes a 0.5HP Water Pump (~400W) + Light combination at approximately 420W, with an estimated backup time of around 3 hours 30 minutes.

Does the EcoSONIC AP-1500 come with solar panels?

Yes. The package includes 2 × 18V 100W Mono Solar Panels, along with 2 × 9W LED Lights, 1 × AC Charger, 1 × 5-in-1 USB Cable.

How much solar input does the AP-1500 support?

The AP-1500 supports a maximum solar charging input of 36V, Max 450W.

What is the battery capacity of the EcoSONIC AP-1500?

The battery capacity is 25.6V / 58Ah (1484.8Wh) and the battery type is LiFePO4.

What is the battery cycle life of the AP-1500?

The LiFePO4 battery is specified for 5000+ Cycles.

What output does the DC5521 port provide?

The DC5521 output is 24V / 5A according to the product specification.

What protection features does the AP-1500 have?

The AP-1500 includes Overcharge, Over-Discharge, High/Low Temperature, Multi-Stage Overcurrent, and Short Circuit Protection.

Does the AP-1500 have a built-in LED light?

Yes. It has a 3W Built-in LED Light with On / Flash / Off modes through the LED Button.

What information does the AP-1500 LCD display show?

The LCD Function Display shows Real-Time Voltage, Power, Battery %, and Temperature.

Availability and Price in Bangladesh

The EcoSONIC AP-1500 Hybrid Solar IPS (1500W / 1484.8Wh) is designed for users across Bangladesh who need high-power backup for home, business, outdoor, job-site, and off-grid applications.

The package includes 2 × 18V 100W Mono Solar Panels, 2 × 9W LED Lights, AC Charger, 5-in-1 USB Cable.

With its 1500W Pure Sine Wave output, 25.6V / 58Ah LiFePO4 battery, 1484.8Wh energy capacity, up to 450W solar charging input, multiple output interfaces, comprehensive protection system, built-in LED light, and LCD Function Display, the AP-1500 is designed for users who need high-power portable backup without installing a permanent power system.

For the latest EcoSONIC AP-1500 price in Bangladesh, current stock availability, delivery information, or bulk/corporate order inquiries, Contact Us.
